ImqTrigger

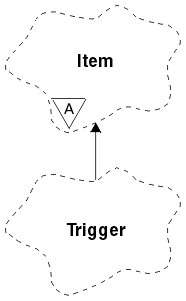

Figure 25. ImqTrigger class

This class encapsulates the MQTM data structure (see Table 25). Objects of this class are typically used by a trigger monitor program, whose task is to wait for these particular messages and act on them to ensure that other WebSphere MQ applications are started when messages are waiting for them.

See the IMQSTRG sample program for a usage example.

Other relevant classes

ImqGetMessageOptions (see ImqGetMessageOptions)

ImqItem (see ImqItem)

ImqMessage (see ImqMessage)

ImqString (see ImqString)

Object attributes

application id

Identity of the application that sent the message. The initial value is a null string.

application type

Type of application that sent the message. The initial value is zero. The following additional values are possible:

MQAT_AIX

MQAT_CICS

MQAT_DOS

MQAT_IMS

MQAT_MVS

MQAT_NOTES_AGENT

MQAT_OS2

MQAT_OS390

MQAT_OS400

MQAT_UNIX

MQAT_WINDOWS

MQAT_WINDOWS_NT

MQAT_USER_FIRST

MQAT_USER_LAST

environment data

Environment data for the process. The initial value is a null string.

process name

Process name. The initial value is a null string.

queue name

Name of the queue to be started. The initial value is a null string.

trigger data

Trigger data for the process. The initial value is a null string.

user data

User data for the process. The initial value is a null string.

Constructors

ImqTrigger( );

The default constructor.

ImqTrigger( const ImqTrigger & trigger );

The copy constructor.

Overloaded "ImqItem" methods

virtual ImqBoolean copyOut( ImqMessage & msg );

Writes an MQTM data structure to the message buffer, replacing any existing content. Sets the msg format to MQFMT_TRIGGER.

See the ImqItem class method description on "ImqItem" for further details.

virtual ImqBoolean pasteIn( ImqMessage & msg );

Reads an MQTM data structure from the message buffer.

To be successful, the ImqMessage format must be MQFMT_TRIGGER.

See the ImqItem class method description on "ImqItem" for further details.

Object methods (public)

void operator = ( const ImqTrigger & trigger );

Instance data is copied from trigger, replacing the existing instance data.

ImqString applicationId( ) const ;

Returns a copy of the application id.

void setApplicationId( const char * id );

Sets the application id.

MQLONG applicationType( ) const ;

Returns the application type.

void setApplicationType( const MQLONG type );

Sets the application type.

ImqBoolean copyOut( MQTMC2 * ptmc2 );

This class encapsulates the MQTM data structure which is the one received on initiation queues. This method fills in an equivalent MQTMC2 data structure provided by the caller, and sets the QMgrName field (which is not present in the MQTM data structure) to all blanks. The MQTMC2 data structure is traditionally used as a parameter to applications started by a trigger monitor. This method returns TRUE if successful.

ImqString environmentData( ) const ;

Returns a copy of the environment data.

void setEnvironmentData( const char * data );

Sets the environment data.

ImqString processName( ) const ;

Returns a copy of the process name.

void setProcessName( const char * name );

Sets the process name, padding with blanks to 48 characters.

ImqString queueName( ) const ;

Returns a copy of the queue name.

void setQueueName( const char * name );

Sets the queue name, padding with blanks to 48 characters.

ImqString triggerData( ) const ;

Returns a copy of the trigger data.

void setTriggerData( const char * data );

Sets the trigger data.

ImqString userData( ) const ;

Returns a copy of the user data.

void setUserData( const char * data );

Sets the user data.

Object data (protected)

MQTM omqtm

The MQTM data structure.

Reason codes

MQRC_NULL_POINTER

MQRC_INCONSISTENT_FORMAT

MQRC_ENCODING_ERROR

MQRC_STRUC_ID_ERROR
