ImqGetMessageOptions

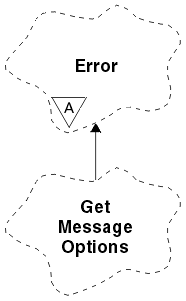

Figure 11. ImqGetMessageOptions class

This class encapsulates the MQGMO data structure (see Table 12).

Other relevant classes

ImqString (see ImqString)

Object attributes

group status

Status of a message with respect to a group of messages. The initial value is MQGS_NOT_IN_GROUP. The following additional values are possible:

MQGS_MSG_IN_GROUP

MQGS_LAST_MSG_IN_GROUP

match options

Options for selecting incoming messages. The initial value is MQMO_MATCH_MSG_ID | MQMO_MATCH_CORREL_ID. The following additional values are possible:

MQMO_GROUP_ID

MQMO_MATCH_MSG_SEQ_NUMBER

MQMO_MATCH_OFFSET

MQMO_MSG_TOKEN

MQMO_NONE

message token

Message token. A binary value (MQBYTE16) of length MQ_MSG_TOKEN_LENGTH. The initial value is MQMTOK_NONE.

options

Options applicable to a message. The initial value is MQGMO_NO_WAIT. The following additional values are possible:

MQGMO_WAIT

MQGMO_SYNCPOINT

MQGMO_SYNCPOINT_IF_PERSISTENT

MQGMO_NO_SYNCPOINT

MQGMO_MARK_SKIP_BACKOUT

MQGMO_BROWSE_FIRST

MQGMO_BROWSE_NEXT

MQGMO_BROWSE_MSG_UNDER_CURSOR

MQGMO_MSG_UNDER_CURSOR

MQGMO_LOCK

MQGMO_UNLOCK

MQGMO_ACCEPT_TRUNCATED_MSG

MQGMO_SET_SIGNAL

MQGMO_FAIL_IF_QUIESCING

MQGMO_CONVERT

MQGMO_LOGICAL_ORDER

MQGMO_COMPLETE_MSG

MQGMO_ALL_MSGS_AVAILABLE

MQGMO_ALL_SEGMENTS_AVAILABLE

MQGMO_NONE

resolved queue name

Resolved queue name. This attribute is read-only. Names are never longer than 48 characters and may be padded to that length with nulls. The initial value is a null string.

returned length

Returned length. The initial value is MQRL_UNDEFINED. This attribute is read-only.

segmentation

The capability for segmentation of a message. The initial value is MQSEG_INHIBITED. The additional value, MQSEG_ALLOWED, is possible.

segment status

The segmentation status of a message. The initial value is MQSS_NOT_A_SEGMENT. The following additional values are possible:

MQSS_SEGMENT

MQSS_LAST_SEGMENT

syncpoint participation

TRUE when messages are retrieved under syncpoint control.

wait interval

Length of time that the ImqQueue class get method pauses while waiting for a suitable message to arrive, if one is not already available. The initial value is zero, which effects an indefinite wait. The additional value, MQWI_UNLIMITED, is possible. This attribute is ignored unless the options include MQGMO_WAIT.

Constructors

ImqGetMessageOptions( );

The default constructor.

ImqGetMessageOptions( const ImqGetMessageOptions & gmo );

The copy constructor.

Object methods (public)

void operator = ( const ImqGetMessageOptions & gmo );

Instance data is copied from gmo, replacing the existing instance data.

MQCHAR groupStatus( ) const ;

Returns the group status.

void setGroupStatus( const MQCHAR status );

Sets the group status.

MQLONG matchOptions( ) const ;

Returns the match options.

void setMatchOptions( const MQLONG options );

Sets the match options.

ImqBinary messageToken( ) const;

Returns the message token.

ImqBoolean setMessageToken( const ImqBinary & token );

Sets the message token. The data length of token must be either zero or MQ_MSG_TOKEN_LENGTH. This method returns TRUE if successful.

void setMessageToken( const MQBYTE16 token = 0 );

Sets the message token. token may be zero, which is the same as specifying MQMTOK_NONE. If token is nonzero, then it must address MQ_MSG_TOKEN_LENGTH bytes of binary data.

When using predefined values, such as MQMTOK_NONE, it may be necessary to make a cast to ensure a signature match, for example (MQBYTE *)MQMTOK_NONE.

MQLONG options( ) const ;

Returns the options.

void setOptions( const MQLONG options );

Sets the options, including the syncpoint participation value.

ImqString resolvedQueueName( ) const ;

Returns a copy of the resolved queue name.

MQLONG returnedLength( ) const;

Returns the returned length.

MQCHAR segmentation( ) const ;

Returns the segmentation.

void setSegmentation( const MQCHAR value );

Sets the segmentation.

MQCHAR segmentStatus( ) const ;

Returns the segment status.

void setSegmentStatus( const MQCHAR status );

Sets the segment status.

ImqBoolean syncPointParticipation( ) const ;

Returns the syncpoint participation value, which is TRUE if the options include either MQGMO_SYNCPOINT or MQGMO_SYNCPOINT_IF_PERSISTENT.

void setSyncPointParticipation( const ImqBoolean sync );

Sets the syncpoint participation value. If sync is TRUE, the options are altered to include MQGMO_SYNCPOINT, and to exclude both MQGMO_NO_SYNCPOINT and MQGMO_SYNCPOINT_IF_PERSISTENT. If sync is FALSE, the options are altered to include MQGMO_NO_SYNCPOINT, and to exclude both MQGMO_SYNCPOINT and MQGMO_SYNCPOINT_IF_PERSISTENT.

MQLONG waitInterval( ) const ;

Returns the wait interval.

void setWaitInterval( const MQLONG interval );

Sets the wait interval.

Object data (protected)

MQGMO omqgmo

An MQGMO Version 2 data structure. Take care to access MQGMO fields supported for MQGMO_VERSION_2 only.

This instance data is available for programs compiled on MQSeries Version 5 products.

PMQGMO opgmo

The address of an MQGMO data structure. The version number for this address is indicated in olVersion. Take care to inspect the version number before accessing MQGMO fields, to ensure they are present.

This instance data is available for programs compiled on MQSeries Version 5 products.

MQLONG olVersion

The version number of the MQGMO data structure addressed by opgmo.

This instance data is available for programs compiled on MQSeries Version 5 products.

Reason codes

MQRC_BINARY_DATA_LENGTH_ERROR
