ImqReferenceHeader

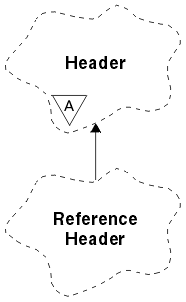

Figure 23. ImqReferenceHeader class

This class encapsulates specific features of the MQRMH data structure. It relates to the MQI calls listed in Table 24.

Other relevant classes

ImqBinary (see ImqBinary)

ImqHeader (see ImqHeader)

ImqItem (see ImqItem)

ImqMessage (see ImqMessage)

ImqString (see ImqString)

Object attributes

destination environment

Environment for the destination. The initial value is a null string.

destination name

Name of the data destination. The initial value is a null string.

instance id

Binary value (MQBYTE24) of length MQ_OBJECT_INSTANCE_ID_LENGTH. The initial value is MQOII_NONE.

logical length

Logical, or intended, length of message data that follows this header. The initial value is zero.

logical offset

Logical offset for the message data that follows, to be interpreted in the context of the data as a whole, at the ultimate destination. The initial value is zero.

logical offset 2

High-order extension to the logical offset. The initial value is zero.

reference type

Reference type. The initial value is a null string.

source environment

Environment for the source. The initial value is a null string.

source name

Name of the data source. The initial value is a null string.

Constructors

ImqReferenceHeader( );

The default constructor.

ImqReferenceHeader( const ImqReferenceHeader & header );

The copy constructor.

Overloaded "ImqItem" methods

virtual ImqBoolean copyOut( ImqMessage & msg );

Inserts an MQRMH data structure into the message buffer at the beginning, moving existing message data further along, and sets the msg format to MQFMT_REF_MSG_HEADER.

See the ImqHeader class method description on "ImqHeader" for further details.

virtual ImqBoolean pasteIn( ImqMessage & msg );

Reads an MQRMH data structure from the message buffer.

To be successful, the ImqMessage format must be MQFMT_REF_MSG_HEADER.

See the ImqHeader class method description on "ImqHeader" for further details.

Object methods (public)

void operator = ( const ImqReferenceHeader & header );

Instance data is copied from header, replacing the existing instance data.

ImqString destinationEnvironment( ) const ;

Returns a copy of the destination environment.

void setDestinationEnvironment( const char * environment = 0 );

Sets the destination environment.

ImqString destinationName( ) const ;

Returns a copy of the destination name.

void setDestinationName( const char * name = 0 );

Sets the destination name.

ImqBinary instanceId( ) const ;

Returns a copy of the instance id.

ImqBoolean setInstanceId( const ImqBinary & id );

Sets the instance id. The data length of token must be either 0 or MQ_OBJECT_INSTANCE_ID_LENGTH. This method returns TRUE if successful.

void setInstanceId( const MQBYTE24 id = 0 );

Sets the instance id. id may be zero, which is the same as specifying MQOII_NONE. If id is nonzero, then it must address MQ_OBJECT_INSTANCE_ID_LENGTH bytes of binary data. When using pre-defined values such as MQOII_NONE, it may be necessary to make a cast to ensure a signature match, for example (MQBYTE *)MQOII_NONE.

MQLONG logicalLength( ) const ;

Returns the logical length.

void setLogicalLength( const MQLONG length );

Sets the logical length.

MQLONG logicalOffset( ) const ;

Returns the logical offset.

void setLogicalOffset( const MQLONG offset );

Sets the logical offset.

MQLONG logicalOffset2( ) const ;

Returns the logical offset 2.

void setLogicalOffset2( const MQLONG offset );

Sets the logical offset 2.

ImqString referenceType( ) const ;

Returns a copy of the reference type.

void setReferenceType( const char * name = 0 );

Sets the reference type.

ImqString sourceEnvironment( ) const ;

Returns a copy of the source environment.

void setSourceEnvironment( const char * environment = 0 );

Sets the source environment.

ImqString sourceName( ) const ;

Returns a copy of the source name.

void setSourceName( const char * name = 0 );

Sets the source name.

Object data (protected)

MQRMH omqrmh

The MQRMH data structure.

Reason codes

MQRC_BINARY_DATA_LENGTH_ERROR

MQRC_STRUC_LENGTH_ERROR

MQRC_STRUC_ID_ERROR

MQRC_INSUFFICIENT_DATA

MQRC_INCONSISTENT_FORMAT

MQRC_ENCODING_ERROR
