ImqIMSBridgeHeader

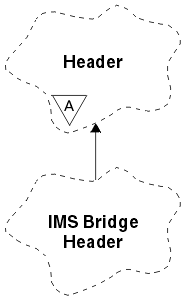

Figure 13. ImqIMSBridgeHeader class

This class encapsulates specific features of the MQIIH data structure (see Table 14). Objects of this class are used by applications that send messages to the IMS bridge through WebSphere MQ for z/OS.

Note:

The ImqHeader character set and encoding must have default values and must not be set to any other values.

Other relevant classes

ImqBinary (see ImqBinary)

ImqHeader (see ImqHeader)

ImqItem (see ImqItem)

ImqMessage (see ImqMessage)

ImqString (see ImqString)

Object attributes

authenticator

RACF password or passticket, of length MQ_AUTHENTICATOR_LENGTH. The initial value is MQIAUT_NONE.

commit mode

Commit mode. See the OTMA User's Guide for more information about IMS commit modes. The initial value is MQICM_COMMIT_THEN_SEND. The additional value, MQICM_SEND_THEN_COMMIT, is possible.

logical terminal override

Logical terminal override, of length MQ_LTERM_OVERRIDE_LENGTH. The initial value is a null string.

message format services map name

MFS map name, of length MQ_MFS_MAP_NAME_LENGTH. The initial value is a null string.

reply-to format

Format of any reply, of length MQ_FORMAT_LENGTH. The initial value is MQFMT_NONE.

security scope

Indicates the desired IMS security processing. The initial value is MQISS_CHECK. The additional value, MQISS_FULL, is possible.

transaction instance id

Transaction instance identity, a binary (MQBYTE16) value of length MQ_TRAN_INSTANCE_ID_LENGTH. The initial value is MQITII_NONE.

transaction state

Indicates the state of the IMS conversation. The initial value is MQITS_NOT_IN_CONVERSATION. The additional value, MQITS_IN_CONVERSATION, is possible.

Constructors

ImqIMSBridgeHeader( );

The default constructor.

ImqIMSBridgeHeader( const ImqIMSBridgeHeader & header );

The copy constructor.

Overloaded "ImqItem" methods

virtual ImqBoolean copyOut( ImqMessage & msg );

Inserts an MQIIH data structure into the message buffer at the beginning, moving existing message data further along. Sets the msg format to MQFMT_IMS.

See the parent class method description for further details.

virtual ImqBoolean pasteIn( ImqMessage & msg );

Reads an MQIIH data structure from the message buffer.

To be successful, the encoding of the msg object should be MQENC_NATIVE. It is recommended that messages be retrieved with MQGMO_CONVERT to MQENC_NATIVE.

To be successful, the ImqMessage format must be MQFMT_IMS.

See the parent class method description for further details.

Object methods (public)

void operator = ( const ImqIMSBridgeHeader & header );

Instance data is copied from header, replacing the existing instance data.

ImqString authenticator( ) const ;

Returns a copy of the authenticator, padded with trailing blanks to length MQ_AUTHENTICATOR_LENGTH.

void setAuthenticator( const char * name );

Sets the authenticator.

MQCHAR commitMode( ) const ;

Returns the commit mode.

void setCommitMode( const MQCHAR mode );

Sets the commit mode.

ImqString logicalTerminalOverride( ) const ;

Returns a copy of the logical terminal override.

void setLogicalTerminalOverride( const char * override );

Sets the logical terminal override.

ImqString messageFormatServicesMapName( ) const ;

Returns a copy of the message format services map name.

void setMessageFormatServicesMapName( const char * name );

Sets the message format services map name.

ImqString replyToFormat( ) const ;

Returns a copy of the reply-to format, padded with trailing blanks to length MQ_FORMAT_LENGTH.

void setReplyToFormat( const char * format );

Sets the reply-to format, padding with trailing blanks to length MQ_FORMAT_LENGTH.

MQCHAR securityScope( ) const ;

Returns the security scope.

void setSecurityScope( const MQCHAR scope );

Sets the security scope.

ImqBinary transactionInstanceId( ) const ;

Returns a copy of the transaction instance id.

ImqBoolean setTransactionInstanceId( const ImqBinary & id );

Sets the transaction instance id. The data length of token must be either zero or MQ_TRAN_INSTANCE_ID_LENGTH. This method returns TRUE if successful.

void setTransactionInstanceId( const MQBYTE16 id = 0 );

Sets the transaction instance id. id may be zero, which is the same as specifying MQITII_NONE. If id is nonzero, then it must address MQ_TRAN_INSTANCE_ID_LENGTH bytes of binary data. When using predefined values such as MQITII_NONE, it may be necessary to make a cast to ensure a signature match, for example (MQBYTE *)MQITII_NONE.

MQCHAR transactionState( ) const ;

Returns the transaction state.

void setTransactionState( const MQCHAR state );

Sets the transaction state.

Object data (protected)

MQIIH omqiih

The MQIIH data structure.

Reason codes

MQRC_BINARY_DATA_LENGTH_ERROR

MQRC_INCONSISTENT_FORMAT

MQRC_ENCODING_ERROR

MQRC_STRUC_ID_ERROR
