ImqCICSBridgeHeader

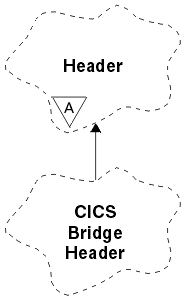

Figure 7. ImqCICSBridgeHeader class

This class encapsulates specific features of the MQCIH data structure (see Table 9). Objects of this class are used by applications that send messages to the CICS bridge through WebSphere MQ for z/OS.

Other relevant classes

ImqBinary (see ImqBinary)

ImqHeader (see ImqHeader)

ImqItem (see ImqItem)

ImqMessage (see ImqMessage)

ImqString (see ImqString)

Object attributes

ADS descriptor

Send/receive ADS descriptor. This is set using MQCADSD_NONE. The initial value is MQCADSD_NONE. The following additional values are possible:

MQCADSD_NONE

MQCADSD_SEND

MQCADSD_RECV

MQCADSD_MSGFORMAT

attention identifier

AID key. The field must be of length MQ_ATTENTION_ID_LENGTH.

authenticator

RACF^(R) password or passticket. The initial value contains blanks, of length MQ_AUTHENTICATOR_LENGTH.

bridge abend code

Bridge abend code, of length MQ_ABEND_CODE_LENGTH. The initial value is four blank characters. The value returned in this field is dependent on the return code. See Table 3 for more details.

bridge cancel code

Bridge abend transaction code. The field is reserved, must contain blanks, and be of length MQ_CANCEL_CODE_LENGTH.

bridge completion code

Completion code, which can contain either the WebSphere MQ completion code or the CICS EIBRESP value. The field has the initial value of MQCC_OK. The value returned in this field is dependent on the return code. See Table 3 for more details.

bridge error offset

Bridge error offset. The initial value is zero. This attribute is read-only.

bridge reason code

Reason code. This field can contain either the WebSphere MQ reason or the CICS EIBRESP2 value. The field has the initial value of MQRC_NONE. The value returned in this field is dependent on the return code. See Table 3 for more details.

bridge return code

Return code from the CICS bridge. The initial value is MQCRC_OK.

conversational task

Indicates whether the task can be conversational. The initial value is MQCCT_NO. The following additional values are possible:

MQCCT_YES

MQCCT_NO

cursor position

Cursor position. The initial value is zero.

facility keep time

CICS bridge facility release time.

facility like

Terminal emulated attribute. The field must be of length MQ_FACILITY_LIKE_LENGTH.

facility token

BVT token value. The field must be of length MQ_FACILITY_LENGTH. The initial value is MQCFAC_NONE.

function

Function, which can contain either the WebSphere MQ call name or the CICS EIBFN function. The field has the initial value of MQCFUNC_NONE, with length MQ_FUNCTION_LENGTH. The value returned in this field is dependent on the return code. See Table 3 for more details.

The following additional values are possible when function contains a WebSphere MQ call name:

MQCFUNC_MQCONN

MQCFUNC_MQGET

MQCFUNC_MQINQ

MQCFUNC_NONE

MQCFUNC_MQOPEN

MQCFUNC_PUT

MQCFUNC_MQPUT1

get wait interval

Wait interval for an MQGET call issued by the CICS bridge task. The field has an initial value of MQCGWI_DEFAULT. The field is applicable only when uow control has the value MQCUOWC_FIRST. The following additional values are possible:

MQCGWI_DEFAULT

MQWI_UNLIMITED

link type

Link type. The initial value is MQCLT_PROGRAM. The following additional values are possible:

MQCLT_PROGRAM

MQCLT_TRANSACTION

next transaction identifier

ID of the next transaction to attach. The field must be of length MQ_TRANSACTION_ID_LENGTH.

output data length

COMMAREA data length. The initial value is MQCODL_AS_INPUT.

reply-to format

Format name of the reply message. The initial value is MQFMT_NONE with length MQ_FORMAT_LENGTH.

start code

Transaction start code. The field must be of length MQ_START_CODE_LENGTH. The initial value is MQCSC_NONE. The following additional values are possible:

MQCSC_START

MQCSC_STARTDATA

MQCSC_TERMINPUT

MQCSC_NONE

task end status

Task end status. The initial value is MQCTES_NOSYNC. The following additional values are possible:

MQCTES_COMMIT

MQCTES_BACKOUT

MQCTES_ENDTASK

MQCTES_NOSYNC

transaction identifier

ID of the transaction to attach. The initial value must contain blanks, and must be of length MQ_TRANSACTION_ID_LENGTH. The field is applicable only when uow control has the value MQCUOWC_FIRST or MQCUOWC_ONLY.

UOW control

UOW control. The initial value is MQCUOWC_ONLY. The following additional values are possible:

MQCUOWC_FIRST

MQCUOWC_MIDDLE

MQCUOWC_LAST

MQCUOWC_ONLY

MQCUOWC_COMMIT

MQCUOWC_BACKOUT

MQCUOWC_CONTINUE

version

This is the MQCIH version number. The initial value is MQCIH_VERSION_2. The only other supported value is MQCIH_VERSION_1.

Constructors

ImqCICSBridgeHeader( );

The default constructor.

ImqCICSBridgeHeader( const ImqCICSBridgeHeader & header );

The copy constructor.

Overloaded "ImqItem" methods

virtual ImqBoolean copyOut( ImqMessage & msg );

Inserts an MQCIH data structure into the message buffer at the beginning, moving existing message data further along, and sets the message format to MQFMT_CICS.

See the parent class method description for more details.

virtual ImqBoolean pasteIn( ImqMessage & msg );

Reads an MQCIH data structure form the message buffer. To be successful, the encoding of the msg object should be MQENC_NATIVE. It is recommended that messages be retrieved with MQGMO_CONVERT to MQENC_NATIVE. To be successful, the ImqMessage format must be MQFMT_CICS.

See the parent class method description for more details.

Object methods (public)

void operator = ( const ImqCICSBridgeHeader & header );

Instance data is copied from the header, replacing the existing instance data.

MQLONG ADSDescriptor( ) const;

Returns a copy of the ADS descriptor.

void setADSDescriptor( const MQLONG descriptor = MQCADSD_NONE );

Sets the ADS descriptor.

ImqString attentionIdentifier( ) const;

Returns a copy of the attention identifier, padded with trailing blanks to length MQ_ATTENTION_ID_LENGTH.

void setAttentionIdentifier( const char * data = 0 );

Sets the attention identifier, padded with trailing blanks to length MQ_ATTENTION_ID_LENGTH. If no data is supplied, attention identifier is reset to the initial value.

ImqString authenticator( ) const;

Returns a copy of the authenticator, padded with trailing blanks to length MQ_AUTHENTICATOR_LENGTH.

void setAuthenticator( const char * data = 0 );

Sets the authenticator, padded with trailing blanks to length MQ_AUTHENTICATOR_LENGTH. If no data is supplied, authenticator is reset to the initial value.

ImqString bridgeAbendCode( ) const;

Returns a copy of the bridge abend code, padded with trailing blanks to length MQ_ABEND_CODE_LENGTH.

ImqString bridgeCancelCode( ) const;

Returns a copy of the bridge cancel code, padded with trailing blanks to length MQ_CANCEL_CODE_LENGTH.

void setBridgeCancelCode( const char * data = 0 );

Sets the bridge cancel code, padded with trailing blanks to length MQ_CANCEL_CODE_LENGTH. If no data is supplied, the bridge cancel code is reset to the initial value.

MQLONG bridgeCompletionCode( ) const;

Returns a copy of the bridge completion code.

MQLONG bridgeErrorOffset( ) const ;

Returns a copy of the bridge error offset.

MQLONG bridgeReasonCode( ) const;

Returns a copy of the bridge reason code.

MQLONG bridgeReturnCode( ) const;

Returns the bridge return code.

MQLONG conversationalTask( ) const;

Returns a copy of the conversational task.

void setConversationalTask( const MQLONG task = MQCCT_NO );

Sets the conversational task.

MQLONG cursorPosition( ) const ;

Returns a copy of the cursor position.

void setCursorPosition( const MQLONG position = 0 );

Sets the cursor position.

MQLONG facilityKeepTime( ) const;

Returns a copy of the facility keep time.

void setFacilityKeepTime( const MQLONG time = 0 );

Sets the facility keep time.

ImqString facilityLike( ) const;

Returns a copy of the facility like, padded with trailing blanks to length MQ_FACILITY_LIKE_LENGTH.

void setFacilityLike( const char * name = 0 );

Sets the facility like, padded with trailing blanks to length MQ_FACILITY_LIKE_LENGTH. If no name is supplied, facility like is reset to the initial value.

ImqBinary facilityToken( ) const;

Returns a copy of the facility token.

ImqBoolean setFacilityToken( const ImqBinary & token );

Sets the facility token. The data length of token must be either zero or MQ_FACILITY_LENGTH. It returns TRUE if successful.

void setFacilityToken( const MQBYTE8 token = 0);

Sets the facility token. token may be zero, which is the same as specifying MQCFAC_NONE. If token is nonzero it must address MQ_FACILITY_LENGTH bytes of binary data. When using predefined values such as MQCFAC_NONE, it may be necessary to make a cast to ensure a signature match. For example, (MQBYTE *)MQCFAC_NONE.

ImqString function( ) const;

Returns a copy of the function, padded with trailing blanks to length MQ_FUNCTION_LENGTH.

MQLONG getWaitInterval( ) const;

Returns a copy of the get wait interval.

void setGetWaitInterval( const MQLONG interval = MQCGWI_DEFA

Sets the get wait interval.

MQLONG linkType( ) const;

Returns a copy of the link type.

void setLinkType( const MQLONG type = MQCLT_PROGRAM );

Sets the link type.

ImqString nextTransactionIdentifier( ) const ;

Returns a copy of the next transaction identifier data, padded with trailing blanks to length MQ_TRANSACTION_ID_LENGTH.

MQLONG outputDataLength( ) const;

Returns a copy of the output data length.

void setOutputDataLength( const MQLONG length = MQCODL_AS_INPUT );

Sets the output data length.

ImqString replyToFormat( ) const;

Returns a copy of the reply-to format name, padded with trailing blanks to length MQ_FORMAT_LENGTH.

void setReplyToFormat( const char * name = 0 );

Sets the reply-to format, padded with trailing blanks to length MQ_FORMAT_LENGTH. If no name is supplied, reply-to format is reset to the initial value.

ImqString startCode( ) const;

Returns a copy of the start code, padded with trailing blanks to length MQ_START_CODE_LENGTH.

void setStartCode( const char * data = 0 );

Sets the start code data, padded with trailing blanks to length MQ_START_CODE_LENGTH. If no data is supplied, start code is reset to the initial value.

MQLONG taskEndStatus( ) const;

Returns a copy of the task end status.

ImqString transactionIdentifier( ) const;

Returns a copy of the transaction identifier data, padded with trailing blanks to the length MQ_TRANSACTION_ID_LENGTH.

void setTransactionIdentifier( const char * data = 0 );

Sets the transaction identifier, padded with trailing blanks to length MQ_TRANSACTION_ID_LENGTH. If no data is supplied, transaction identifier is reset to the initial value.

MQLONG UOWControl( ) const;

Returns a copy of the UOW control.

void setUOWControl( const MQLONG control = MQCUOWC_ONLY );

Sets the UOW control.

MQLONG version( ) const;

Returns the version number.

ImqBoolean setVersion( const MQLONG version = MQCIH_VERSION_2 );

Sets the version number. It returns TRUE if successful.

Object data (protected)

MQLONG olVersion

The maximum MQCIH version number that can be accommodated in the storage allocated for opcih.

PMQCIH opcih

The address of an MQCIH data structure. The amount of storage allocated is indicated by olVersion.

Reason codes

MQRC_BINARY_DATA_LENGTH_ERROR

MQRC_WRONG_VERSION

Return codes

Table 3. ImqCICSBridgeHeader class return codes
