ImqAuthenticationRecord

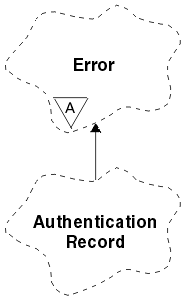

Figure 3. ImqAuthenticationRecord class

A Booch class diagram showing the ImqAuthenticationRecord class and its parent class, ImqError.

This class encapsulates an authentication information record (MQAIR) for use during execution of the ImqQueueManager::connect method, for custom SSL client connections. See the description of that method for more details. This class is available on WebSphere MQ V5.3 and later, but not on the z/OS platform.

Other relevant classes

ImqBoolean (see Elementary data types)

ImqError (see ImqError)

ImqQueueManager (see ImqQueueManager)

ImqString (see ImqString)

Object attributes

connection name: The name of the connection to the CRL server. For example, the IP address of a host computer.
connection reference: A reference to an ImqQueueManager object that provides the required connection to a (local) queue manager. The initial value is zero. Do not confuse this with the ImqQueue queue manager name that identifies a queue manager (possibly remote) for a named queue.
next authentication record: Next object of this class, in no particular order, having the same connection reference as this object. The initial value is zero.
password: A password supplied for connection authentication to the CRL server.
previous authentication record: Previous object of this class, in no particular order, having the same connection reference as this object. The initial value is zero.
type: Specifies the type of authentication information contained in the record.
user name: A user identifier supplied for authorization to the CRL server.

Constructors

ImqAuthenticationRecord( );: The default constructor.

Object methods (public)

void operator = ( const ImqAuthenticationRecord & air);: Instance data is copied from air, replacing the existing instance data.
const ImqString & connectionName ( ) const ;: Returns the connection name.
void setConnectionName ( const ImqString & name );: Sets the connection name.
void setConnectionName ( const char * name = 0 );: Sets the connection name.
ImqQueueManager * connectionReference ( ) const ;: Returns the connection reference.
void setConnectionReference ( ImqQueueManager & manager );: Sets the connection reference.
void setConnectionReference ( ImqQueueManager * manager = 0 );: Sets the connection reference.
void copyOut ( MQAIR * pAir );: Instance data is copied to pAir, replacing the existing instance data. This might involve allocating dependent storage.
void clear ( MQAIR * pAir );: Clear the structure and release dependent storage referenced by pAir.
ImqAuthenticationRecord * nextAuthenticationRecord ( ) const ;: Returns the next authentication record.
const ImqString & password ( ) const ;: Returns the password.
void setPassword ( const ImqString & password );: Sets the password.
void setPassword ( const char * password = 0 );: Sets the password.
ImqAuthenticationRecord * previousAuthenticationRecord ( ) const ;: Returns the previous authentication record.
MQLONG type ( ) const ;: Returns the type.
void setType ( const MQLONG type );: Sets the type.
const ImqString & userName ( ) const ;: Returns the user name.
void setUserName ( const ImqString & name );: Sets the user name.
void setUserName ( const char * name = 0 );: Sets the user name.

Object methods (protected)

void setNextAuthenticationRecord ( ImqAuthenticationRecord * pAir = 0 );: Sets the next authentication record.
Attention: Use this function only if you are sure it will not break the authentication record list.
void setPreviousAuthenticationRecord ( ImqAuthenticationRecord * pAir = 0 );: Sets the previous authentication record.
Attention: Use this function only if you are sure it will not break the authentication record list.
