Mapping JMS messages onto WebSphere MQ messages

This section describes how the JMS message structure that is described in the first part of this chapter is mapped onto a WebSphere MQ message. It is of interest to programmers who wish to transmit messages between JMS and traditional WebSphere MQ applications. It is also of interest to people who wish to manipulate messages transmitted between two JMS applications - for example, in a message broker implementation.

This section does not apply when you use a direct connection to WebSphere MQ Event Broker.

WebSphere MQ messages are composed of three components:

• The WebSphere MQ Message Descriptor (MQMD)
• An WebSphere MQ MQRFH2 header
• The message body.

The MQRFH2 is optional, and its inclusion in an outgoing message is governed by a flag in the JMS Destination class. You can set this flag using the WebSphere MQ JMS administration tool. Because the MQRFH2 carries JMS-specific information, always include it in the message when the sender knows that the receiving destination is a JMS application. Normally, omit the MQRFH2 when sending a message directly to a non-JMS application (WebSphere MQ Native application). This is because such an application does not expect an MQRFH2 in its WebSphere MQ message. Figure 4 shows how the structure of a JMS message is transformed to a WebSphere MQ message and back again:

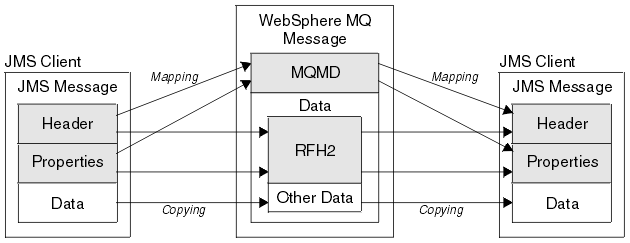

Figure 4. How messages are transformed between JMS and WebSphere MQ using the MQRFH2 header

The structures are transformed in two ways:

Mapping

Where the MQMD includes a field that is equivalent to the JMS field, the JMS field is mapped onto the MQMD field. Additional MQMD fields are exposed as JMS properties, because a JMS application may need to get or set these fields when communicating with a non-JMS application.

Copying

Where there is no MQMD equivalent, a JMS header field or property is passed, possibly transformed, as a field inside the MQRFH2.

The MQRFH2 header

This section describes the MQRFH Version 2 header, which carries JMS-specific data that is associated with the message content. The MQRFH2 Version 2 is an extensible header, and can also carry additional information that is not directly associated with JMS. However, but this section covers only its use by JMS.

There are two parts of the header, a fixed portion, and a variable portion.

Fixed portion

The fixed portion is modelled on the "standard" WebSphere MQ header pattern and consists of the following fields:

StrucId (MQCHAR4)

Structure identifier.

Must be MQRFH_STRUC_ID (value: "RFH ") (initial value).

MQRFH_STRUC_ID_ARRAY (value: "R","F","H"," ") is also defined in the usual way.

Version (MQLONG)

Structure version number.

Must be MQRFH_VERSION_2 (value: 2) (initial value).

StrucLength (MQLONG)

Total length of MQRFH2, including the NameValueData fields.

The value set into StrucLength must be a multiple of 4 (the data in the NameValueData fields may be padded with space characters to achieve this).

Encoding (MQLONG)

Data encoding.

Encoding of any numeric data in the portion of the message following the MQRFH2 (the next header, or the message data following this header).

CodedCharSetId (MQLONG)

Coded character set identifier.

Representation of any character data in the portion of the message following the MQRFH2 (the next header, or the message data following this header).

Format (MQCHAR8)

Format name.

Format name for the portion of the message following the MQRFH2.

Flags (MQLONG)

Flags.

MQRFH_NO_FLAGS =0. No flags set.

NameValueCCSID (MQLONG)

The coded character set identifier (CCSID) for the NameValueData character strings contained in this header. The NameValueData may be coded in a character set that differs from the other character strings that are contained in the header (StrucID and Format).

If the NameValueCCSID is a 2-byte Unicode CCSID (1200, 13488, or 17584), the byte order of the Unicode is the same as the byte ordering of the numeric fields in the MQRFH2. (For example, Version, StrucLength, NameValueCCSID itself.)

The NameValueCCSID may take only values from the following table:

Table 17. Possible values for NameValueCCSID field

Value	Meaning
1200	UCS2 open-ended
1208	UTF8
13488	UCS2 2.0 subset
17584	UCS2 2.1 subset (includes Euro symbol)

Variable Portion

The variable portion follows the fixed portion. The variable portion contains a variable number of MQRFH2 Folders. Each folder contains a variable number of elements or properties. Folders group together related properties. The MQRFH2 headers created by JMS can contain up to three folders:

The <mcd> folder

This contains properties that describe the "shape" or "format" of the message. For example the Msd property identifies the message as being Text, Bytes, Stream. Map, Object, or "Null". This folder is always present in a JMS MQRFH2.

The <jms> folder

This is used to transport JMS header fields, and JMSX properties that cannot be fully expressed in the MQMD. This folder is always present in a JMS MQRFH2.

The <usr> folder

This is used to transport any application-defined properties associated with the message. This folder is only present if the application has set some application-defined properties.

Table 18 shows a full list of property names.

Table 18. MQRFH2 folders and properties used by JMS

JMS Field Name	Java type	MQRFH2 Folder name	Property name	Type/values
JMSDestination	Destination	jms	Dst	string
JMSExpiration	long	jms	Exp	i8
JMSPriority	int	jms	Pri	i4
JMSDeliveryMode	int	jms	Dlv	i4
JMSCorrelationID	String	jms	Cid	string
JMSReplyTo	Destination	jms	Rto	string
JMSTimestamp	long	jms	Tms	i8
JMSType	String	mcd	Type, Set, Fmt	string
JMSXGroupID	String	jms	Gid	string
JMSXGroupSeq	int	jms	Seq	i4
xxx (User Defined)	Any	usr	xxx	any
		mcd	Msd	jms_none jms_text jms_bytes jms_map jms_stream jms_object

The syntax used to express the properties in the variable portion is as follows:

NameValueLength (MQLONG)

Length in bytes of the NameValueData string that immediately follows this length field (it does not include its own length). The value set into NameValueLength is always a multiple of 4 (the NameValueData field is padded with space characters to achieve this).

NameValueData (MQCHARn)

A single character string, whose length in bytes is given by the preceding NameValueLength field. It contains a "folder" holding a sequence of "properties". Each property is a "name/type/value" triplet, contained within an XML element whose name is the folder name, as follows:

 <foldername> triplet1 triplet2 .....   tripletn </foldername>

The closing </foldername> tag can be followed by spaces as padding characters. Each triplet is encoded using an XML-like syntax:

   <name dt='datatype'>value</name>

The dt='datatype' element is optional and is omitted for many properties, because their datatype is predefined. If it is included, one or more space characters must be included before the dt= tag.

name is the name of the property - see Table 18.

datatype must match, after folding, one of the literal Datatype values in Table 19.

value is a string representation of the value to be conveyed, using the Definitions inTable 19.

A null value is encoded using the following syntax:

<name dt="DataType" xsi:nil="true"></name>

Note that xsi:nil="false" should not be used.

Table 19. Property datatype values and definitions

Datatype value	Definition
string	Any sequence of characters excluding < and &
boolean	The character 0 or 1 (1 = "true")
bin.hex	Hexadecimal digits representing octets
i1	A number, expressed using digits 0..9, with optional sign (no fractions or exponent). Must lie in the range -128 to 127 inclusive
i2	A number, expressed using digits 0..9, with optional sign (no fractions or exponent). Must lie in the range -32768 to 32767 inclusive
i4	A number, expressed using digits 0..9, with optional sign (no fractions or exponent). Must lie in the range -2147483648 to 2147483647 inclusive
i8	A number, expressed using digits 0..9, with optional sign (no fractions or exponent). Must lie in the range -9223372036854775808 to 92233720368547750807 inclusive
int	A number, expressed using digits 0..9, with optional sign (no fractions or exponent). Must lie in the same range as 'i8'. This can be used in place of one of the 'i*' types if the sender does not wish to associate a particular precision with the property
r4	Floating point number, magnitude <= 3.40282347E+38, >= 1.175E-37 expressed using digits 0..9, optional sign, optional fractional digits, optional exponent
r8	Floating point number, magnitude <= 1.7976931348623E+308, >= 2.225E-307 expressed using digits 0..9, optional sign, optional fractional digits, optional exponent

A string value may contain spaces. You must use the following escape sequences in a string value:

&amp; for the & character

&lt; for the < character

You can use the following escape sequences, but they are not required:

&gt; for the > character

&apos; for the ' character

&quot; for the " character

JMS fields and properties with corresponding MQMD fields

Table 20 lists the JMS header fields and Table 21 lists the JMS properties that are mapped directly to MQMD fields. Table 22 lists the provider specific properties and the MQMD fields that they are mapped to.

Table 20. JMS header fields mapping to MQMD fields

Table 21. JMS properties mapping to MQMD fields

Table 22. JMS provider specific properties mapping to MQMD fields

Mapping JMS fields onto WebSphere MQ fields (outgoing messages)

Table 23 shows how the JMS header fields are mapped into MQMD/RFH2 fields at send() or publish() time. Table 24 shows how JMS properties and Table 25 shows how JMS provider specific properties are mapped to MQMD fields at send() or publish() time,

For fields marked "Set by Message Object", the value transmitted is the value held in the JMS message immediately before the send() or publish() operation. The value in the JMS Message is left unchanged by the operation.

For fields marked "Set by Send Method", a value is assigned when the send() or publish() is performed (any value held in the JMS Message is ignored). The value in the JMS message is updated to show the value used.

Fields marked as "Receive-only" are not transmitted and are left unchanged in the message by send() or publish().

Table 23. Outgoing message field mapping

Table 24. Outgoing message JMS property mapping

Table 25. Outgoing message JMS provider specific property mapping

Mapping JMS header fields at send() or publish()

The following notes relate to the mapping of JMS fields at send() or publish():

• JMS Destination to MQRFH2: This is stored as a string that serializes the salient characteristics of the destination object, so that a receiving JMS can reconstitute an equivalent destination object. The MQRFH2 field is encoded as URI (see (JMSURI) for details of the URI notation).
• JMSReplyTo to MQMD ReplyToQ, ReplyToQMgr, MQRFH2: The Queue and QueueManager name are copied to the MQMD ReplyToQ and ReplyToQMgr fields respectively. The destination extension information (other "useful" details that are kept in the Destination Object) is copied into the MQRFH2 field. The MQRFH2 field is encoded as URI (see (JMSURI) for details of the URI notation).

• JMSDeliveryMode to MQMD Persistence: The JMSDeliveryMode value is set by the send() or publish() Method or MessageProducer, unless the Destination Object overrides it. The JMSDeliveryMode value is mapped to the MQMD Persistence field as follows:
  • JMS value PERSISTENT is equivalent to MQPER_PERSISTENT
  • JMS value NON_PERSISTENT is equivalent to MQPER_NOT_PERSISTENT

  If the MQQueue persistence property is not set to JMSC.MQJMS_PER_QDEF the delivery mode value is also encoded in the MQRFH2.

• JMSExpiration to/from MQMD Expiry, MQRFH2: JMSExpiration stores the time to expire (the sum of the current time and the time to live), whereas MQMD stores the time to live. Also, JMSExpiration is in milliseconds, but MQMD.expiry is in centiseconds.
  • If the send() method sets an unlimited time to live, MQMD Expiry is set to MQEI_UNLIMITED, and no JMSExpiration is encoded in the MQRFH2.
  • If the send() method sets a time to live that is less than 214748364.7 seconds (about 7 years), the time to live is stored in MQMD. Expiry and the expiration time (in milliseconds) is encoded as an i8 value in the MQRFH2.
  • If the send() method sets a time to live greater than 214748364.7 seconds, MQMD.Expiry is set to MQEI_UNLIMITED. The true expiration time in milliseconds is encoded as an i8 value in the MQRFH2.
• JMSPriority to MQMD Priority: Directly map JMSPriority value (0-9) onto MQMD priority value (0-9). If JMSPriority is set to a non-default value, the priority level is also encoded in the MQRFH2.
• JMSMessageID from MQMD MessageID: All messages sent from JMS have unique message identifiers assigned by WebSphere MQ. The value assigned is returned in the MQMD messageId field after the MQPUT call, and is passed back to the application in the JMSMessageID field. The WebSphere MQ messageId is a 24-byte binary value, whereas the JMSMessageID is a String. The JMSMessageID is composed of the binary messageId value converted to a sequence of 48 hexadecimal characters, prefixed with the characters "ID:". JMS provides a hint that can be set to disable the production of message identifiers. This hint is ignored, and a unique identifier is assigned in all cases. Any value that is set into the JMSMessageId field before a send() is overwritten.
• JMSTimestamp to MQRFH2: During a send, the JMSTimestamp field is set according to the JVM's clock. This value is set into the MQRFH2. Any value that is set into the JMSTimestamp field before a send() is overwritten. See also the JMS_IBM_PutDate and JMS_IBM_PutTime properties.
• JMSType to MQRFH2: This string is set into the MQRFH2 mcd.Type field. If it is in URI format, it may also affect mcd.Set and mcd.Fmt fields. See also Appendix D, Connecting with other products.
• JMSCorrelationID to MQMD CorrelId, MQRFH2: The JMSCorrelationID can hold one of the following:
  • A provider specific message ID: This is a message identifier from a message previously sent or received, and so should be a string of 48 hexadecimal digits that are prefixed with "ID:". The prefix is removed, the remaining characters are converted into binary, and then they are set into the MQMD CorrelId field. No CorrelId value is encoded in the MQRFH2.
  • A provider-native byte[] value: The value is copied into the MQMD CorrelId field - padded with nulls, or truncated to 24 bytes if necessary. No CorrelId value is encoded in the MQRFH2.
  • An application-specific String: The value is copied into the MQRFH2. The first 24 bytes of the string, in UTF8 format, are written into the MQMD CorrelID.

Mapping JMS property fields

These notes refer to the mapping of JMS property fields in WebSphere MQ messages:

• JMSXUserID from MQMD UserIdentifier: JMSXUserID is set on return from send call.
• JMSXAppID from MQMD PutApplName: JSMXAppID is set on return from send call.
• JMSXGroupID to MQRFH2 (point-to-point): For point-to-point messages, the JMSXGroupID is copied into the MQMD GroupID field. If the JMSXGroupID starts with the prefix "ID:", it is converted into binary. Otherwise, it is encoded as a UTF8 string. The value is padded or truncated if necessary to a length of 24 bytes. The MQMF_MSG_IN_GROUP flag is set.
• JMSXGroupID to MQRFH2 (publish/subscribe): For publish/subscribe messages, the JMSXGroupID is copied into the MQRFH2 as a string.
• JMSXGroupSeq MQMD MsgSeqNumber (point-to-point): For point-to-point messages, the JMSXGroupSeq is copied into the MQMD MsgSeqNumber field. The MQMF_MSG_IN_GROUP flag is set.
• JMSXGroupSeq MQMD MsgSeqNumber (publish/subscribe): For publish/subscribe messages, the JMSXGroupSeq is copied into the MQRFH2 as an i4.

Mapping JMS provider-specific fields

The following notes refer to the mapping of JMS Provider specific fields into WebSphere MQ messages:

• JMS_IBM_Report_<name> to MQMD Report: A JMS application can set the MQMD Report options, using the following JMS_IBM_Report_XXX properties. The single MQMD is mapped to several JMS_IBM_Report_XXX properties. The application should set the value of these properties to the standard WebSphere MQ MQRO_ constants (included in com.ibm.mq.MQC). So, for example, to request COD with full Data, the application should set JMS_IBM_Report_COD to the value MQC.MQRO_COD_WITH_FULL_DATA.

  JMS_IBM_Report_Exception


  MQRO_EXCEPTION or
  MQRO_EXCEPTION_WITH_DATA or
  MQRO_EXCEPTION_WITH_FULL_DATA


  JMS_IBM_Report_Expiration


  MQRO_EXPIRATION or
  MQRO_EXPIRATION_WITH_DATA or
  MQRO_EXPIRATION_WITH_FULL_DATA


  JMS_IBM_Report_COA


  MQRO_COA or
  MQRO_COA_WITH_DATA or
  MQRO_COA_WITH_FULL_DATA


  JMS_IBM_Report_COD


  MQRO_COD or
  MQRO_COD_WITH_DATA or
  MQRO_COD_WITH_FULL_DATA


  JMS_IBM_Report_PAN

  MQRO_PAN

  JMS_IBM_Report_NAN

  MQRO_NAN

  JMS_IBM_Report_Pass_Msg_ID

  MQRO_PASS_MSG_ID

  JMS_IBM_Report_Pass_Correl_ID

  MQRO_PASS_CORREL_ID

  JMS_IBM_Report_Discard_Msg

  MQRO_DISCARD_MSG

• JMS_IBM_MsgType to MQMD MsgType: Value maps directly onto MQMD MsgType. If the application has not set an explicit value of JMS_IBM_MsgType, then a default value is used. This default value is determined as follows:
  • If JMSReplyTo is set to a WebSphere MQ queue destination, MSGType is set to the value MQMT_REQUEST
  • If JMSReplyTo is not set, or is set to anything other than a WebSphere MQ queue destination, MsgType is set to the value MQMT_DATAGRAM
• JMS_IBM_Feedback to MQMD Feedback: Value maps directly onto MQMD Feedback.
• JMS_IBM_Format to MQMD Format: Value maps directly onto MQMD Format.
• JMS_IBM_Encoding to MQMD Encoding: If set, this property overrides the numeric encoding of the Destination Queue or Topic.
• JMS_IBM_Character_Set to MQMD CodedCharacterSetId: If set, this property overrides the coded character set property of the Destination Queue or Topic.
• JMS_IBM_PutDate from MQMD PutDate: The value of this property is set, during send, directly from the PutDate field in the MQMD. Any value that is set into the JMS_IBM_PutDate property before a send is overwritten. This field is a String of eight characters, in the WebSphere MQ Date format of "YYYYMMDD". This property can be used in conjunction with the JMS_IBM_PutTime property to determine the time the message was put according to the queue manager.
• JMS_IBM_PutTime from MQMD PutTime: The value of this property is set, during send, directly from the PutTime field in the MQMD. Any value that is set into the JMS_IBM_PutTime property before a send is overwritten. This field is a String of eight characters, in the WebSphere MQ Time format of "HHMMSSTH". This property can be used in conjunction with the JMS_IBM_PutDate property to determine the time the message was put according to the queue manager.
• JMS_IBM_Last_Msg_In_Group to MQMD MsgFlags: For Point-to-Point messaging, this boolean value maps to the MQMF_LAST_MSG_IN_GROUP flag in the MQMD MsgFlags field. It is normally used in conjunction with the JMSXGroupID and JMSXGroupSeq properties to indicate to a legacy WebSphere MQ application that this is the last message in a group. This property is ignored for publish/subscribe messaging

Mapping WebSphere MQ fields onto JMS fields (incoming messages)

Table 26 shows how JMS header fields and Table 27 shows how JMS property fields are mapped into MQMD/MQRFH2 fields at send() or publish() time. Table 28 shows how JMS provider specific properties are mapped.

Table 26. Incoming message JMS header field mapping

Table 27. Incoming message property mapping

Table 28. Incoming message provider specific JMS property mapping

Mapping JMS to a native WebSphere MQ application

This section describes what happens if you send a message from a JMS Client application to a traditional WebSphere MQ application which has no knowledge of MQRFH2 headers. Figure 5 is a diagram of the mapping.

The administrator indicates that the JMS Client is communicating with such an application by setting the WebSphere MQ Destination's TargetClient value to JMSC.MQJMS_CLIENT_NONJMS_MQ. This indicates that no MQRFH2 field is to be produced. Note that if this is not done, the receiving application must be able to handle the MQRFH2 field.

The mapping from JMS to MQMD targeted at a native WebSphere MQ application is the same as mapping from JMS to MQMD targeted at a true JMS client. If JMS receives a WebSphere MQ message with the MQMD Format field set to other than MQFMT_RFH2, we know that we are receiving data from a non-JMS application. If the Format is MQFMT_STRING, the message is received as a JMS Text Message. Otherwise, it is received as a JMS Bytes message. Because there is no MQRFH2, only those JMS properties that are transmitted in the MQMD can be restored.

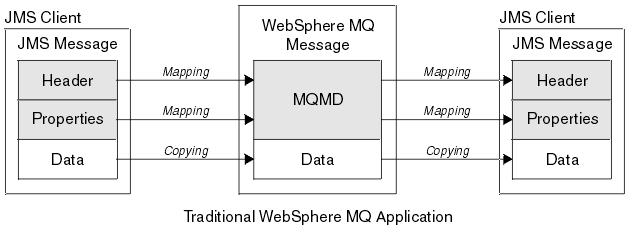

Figure 5. How JMS messages are transformed to WebSphere MQ messages (no MQRFH2 header)

Message body

This section discusses the encoding of the message body itself. The encoding depends on the type of JMS message:

ObjectMessage

is an object serialized by the Java Runtime in the normal way.

TextMessage

is an encoded string. For an outgoing message, the string is encoded in the character set given by the Destination object. This defaults to UTF8 encoding (the UTF8 encoding starts with the first character of the message - there is no length field at the start). It is, however, possible to specify any other character set supported by WebSphere MQ Java. Such character sets are used mainly when you send a message to a non-JMS application.

If the character set is a double-byte set (including UTF16), the Destination object's integer encoding specification determines the order of the bytes.

An incoming message is interpreted using the character set and encoding that are specified in the message itself. These specifications are in the rightmost WebSphere MQ header (or MQMD if there are no headers). For JMS messages, the rightmost header will usually be the MQRFH2.

BytesMessage

is, by default, a sequence of bytes as defined by the JMS 1.0.2 specification, and associated Java documentation.

For an outgoing message that was assembled by the application itself, the Destination object's encoding property may be used to override the encodings of integer and floating point fields contained in the message. For example, you can request that floating point values are stored in S/390 rather than IEEE format).

An incoming message is interpreted using the numeric encoding specified in the message itself. This specification is in the rightmost WebSphere MQ header (or MQMD if there are no headers). For JMS messages, the rightmost header will usually be the MQRFH2.

If a BytesMessage is received, and is resent without modification, its body is transmitted byte for byte, as it was received. The Destination object's encoding property has no effect on the body. The only string-like entity that can be sent explicitly in a BytesMessage is a UTF8 string. This is encoded in Java UTF8 format, and starts with a 2-byte length field. The Destination object's character set property has no effect on the encoding of an outgoing BytesMessage. The character set value in an incoming WebSphere MQ message has no effect on the interpretation of that message as a JMS BytesMessage.

Non-Java applications are unlikely to recognize the Java UTF8 encoding. Therefore, for a JMS application to send a BytesMessage that contains text data, the application itself must convert its strings to byte arrays, and write these byte arrays into the BytesMessage.

MapMessage

is a string containing a set of XML name/type/value triplets, encoded as:

<map><elementName1 dt='datatype'>value</elementName1>
<elementName2 dt='datatype'>value</elementName2>.....
</map>

where:

datatype can take one of the values described in Table 19.

string is the default datatype, so dt='string' is omitted.

The character set used to encode or interpret the XML string that makes up the MapMessage body is determined following the rules that apply to a TextMessage.

StreamMessage

is like a map, but without element names:

<stream><elt dt='datatype'>value</elt>
<elt dt='datatype'>value</elt>.....</stream>

Every element is sent using the same tagname (elt). The default type is string, so dt='string' is omitted for string elements.

The character set used to encode or interpret the XML string that makes up the StreamMessage body is determined following the rules that apply to a TextMessage.

The MQRFH2.format field is set as follows:

MQFMT_NONE

for ObjectMessage, BytesMessage, or messages with no body.

MQFMT_STRING

for TextMessage, StreamMessage, or MapMessage.
